Yokistar

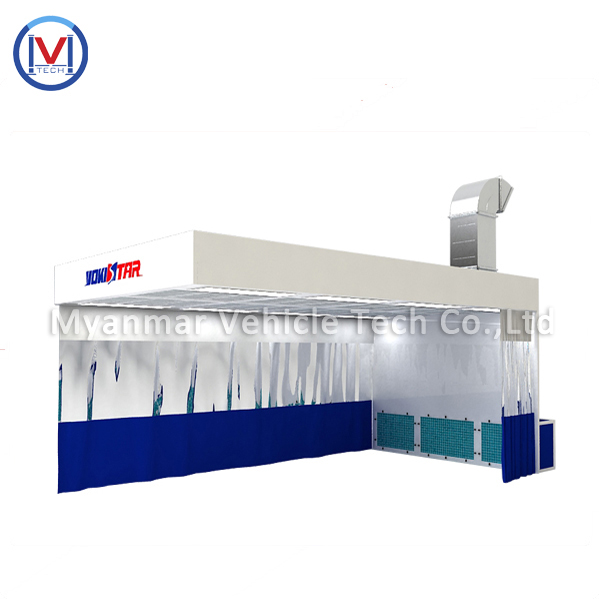

PREP Station (rear wall extraction)
USD 8,400
Specification
Model : YS-PRP-R
Inside Size
6300x3450x2700mm(LxWxH).
Outside Size
7550x3550x3100mm(LxWxH).
4 sides configuration
Rear wall: made of 1.0mm thick galvanised steel, painted with white powder.
Front,Left and Right: PVC curtain, thick is 0.5mm.
Roof Panel
Made of 0.6mm thick bended galvanised plate.
Ceiling Light
Left and right upper position have 4 lighting fixtures, total 8 fixtures. Each fixture is equipped with
4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast.
Plenum
400mm high, all spare parts of plenum are made of galvanised bended steel and treated by white
powder for long using life.
Ceiling Filter
Supporting net is made of C shape steel with surface oil painted treatment,
Sub-high efficiency filter,F5 Grade(EN779),type is SP-600G.
