FY Tech

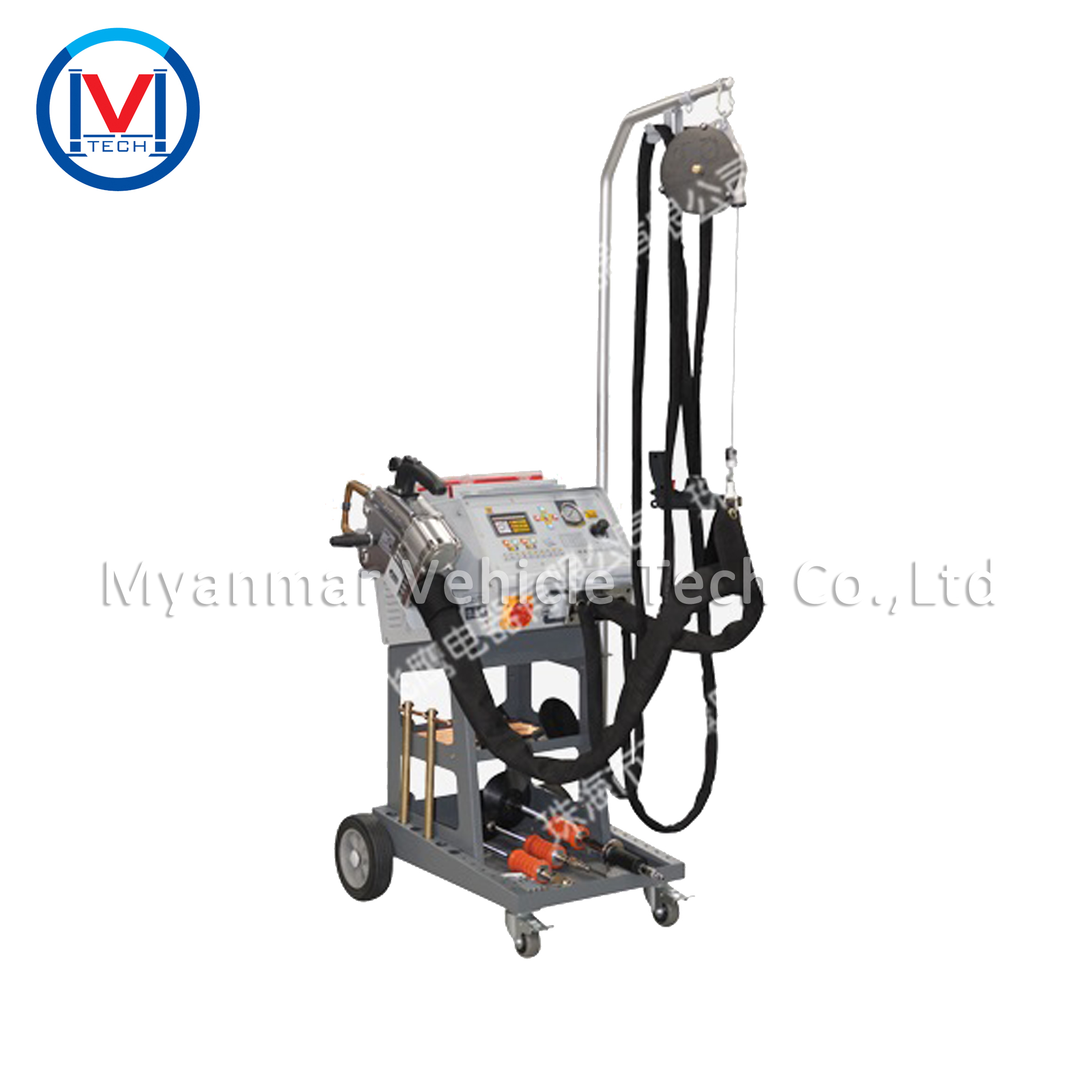

Dent Pulling Spot Welding Machine
USD 1250
Specification
Model : FY9900C
Brand : FY-Tech
Input voltage: AC380-440V 50/60Hz
Input power: 26.8KVA
Input current: 60A
Max welding current: 9900A
Output voltage carbon rod heating: AC6-10V
Output voltage washer melting rate: AC1-12V
Output voltage butt-weld: AC1-13V
One-side welding thickness: 1.0+1.5mm
Two-side welding thickness: 2.5+2.5mm
Maximum spot weld nugget : 7mm
Air supply pressure: 6-8kg
Operation way: Electronic timer continuity
Weld timing range: 0-99min
Cable length: 2500+2500,2300+2300mm
The microprocessor control system optimizes the welding parameters. Using advanced digital control technology and user friendly design, all you have to do is select the welding current corresponding to the work piece thickness to achieve the best welding results.
Automatic mains voltage monitoring
Overheating protection
Designed for dent pulling of different kinds of car steels such as conventional steel and stainless steel.
Uniquely designed gun cable support arm allows flexible movement with 360 rotation.
Complete with air filter and pressure regulator
Stepless current and time regulation
Single-sided and double-sided welding
Digital graphic LCD display
10 preset weld programs
60 memories functions
Electrodes of X OR C-type gun can be step-by-step opened and quadratic rapid closed
Variety of welding procedures are available such as shrinking, washer, direct pulling, spot welding, flattening, waveform wire, stud welding, OT washer and triangle washer.? Complete with pneumatic vacuum cupule
